簡介

TradingView 是一家專門做報價圖表的公司，在工作上會使用到他們的圖表套件。目前有使用到兩套：一套功能比較完整charting_library需付費，另一套比較輕量開源lightweight-charts。

輕量適合單純呈現一張走勢圖使用。
完整的包含內建的各種技術指標、分時走勢、畫圖工具等等。

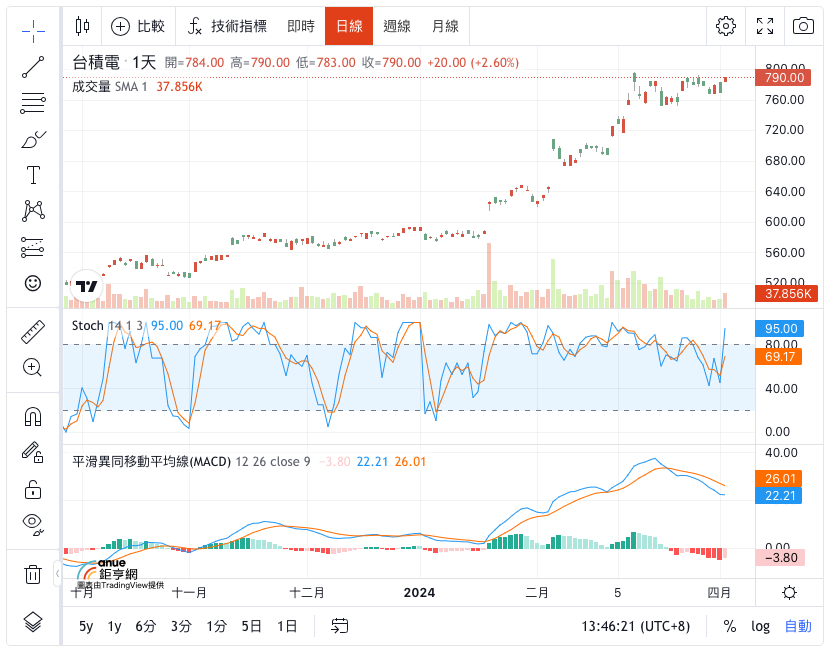

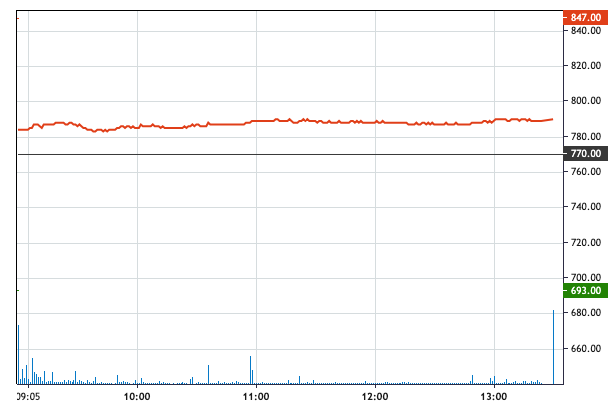

lightweight-charts(輕量)	charting_library(完整)

文件

從 v25 後開始有人性化的文件，Interface 格式也都很好查詢。也提供不同語言的範例程式。

Document:
- https://www.tradingview.com/charting-library-docs/
各種語言範例:
- https://github.com/tradingview/charting-library-examples

實作

建立全新的 React 專案

# node: v20.7.0
npx create-react-app tradingview-app --template typescript # 建立新的React專案
cd tradingview-app # 進到專案目錄
npm i # 安裝相依套件
npm start # 啟動專案

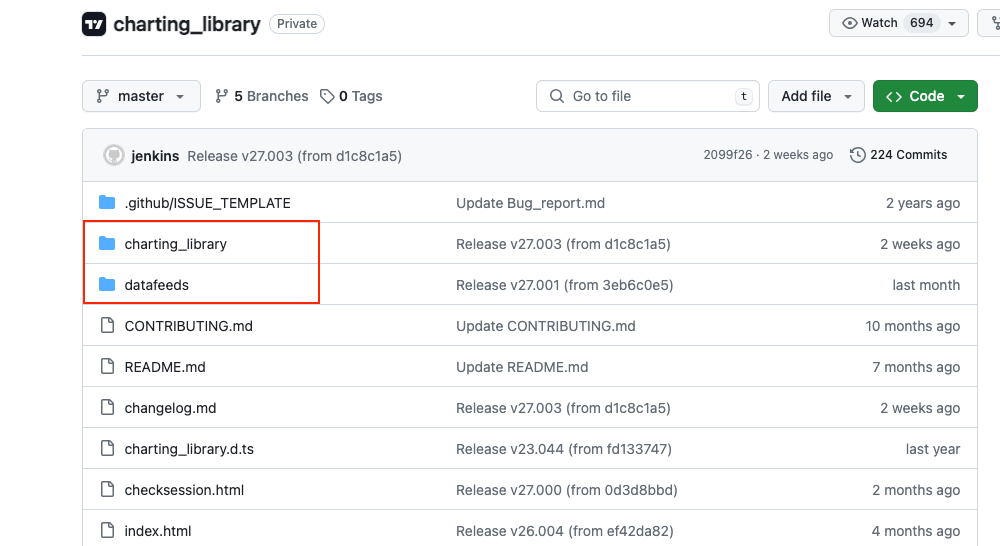

從charting_library下載charting_library 與 datafeeds 放到/public下
- charting_library: 包含呈現圖表的靜態檔案
- datafeeds: 官方提供測試用的 API 資料(後面串接自家 API 可以不需要)

載入 JS 檔案

在 index.html 的<head>內加入<script>, 會在瀏覽器的 window 加上 TradingView 與 Datafeeds 物件

<head>
  ...
  <script src="charting_library/charting_library.standalone.js"></script>
  <script src="datafeeds/udf/dist/bundle.js"></script>
</head>

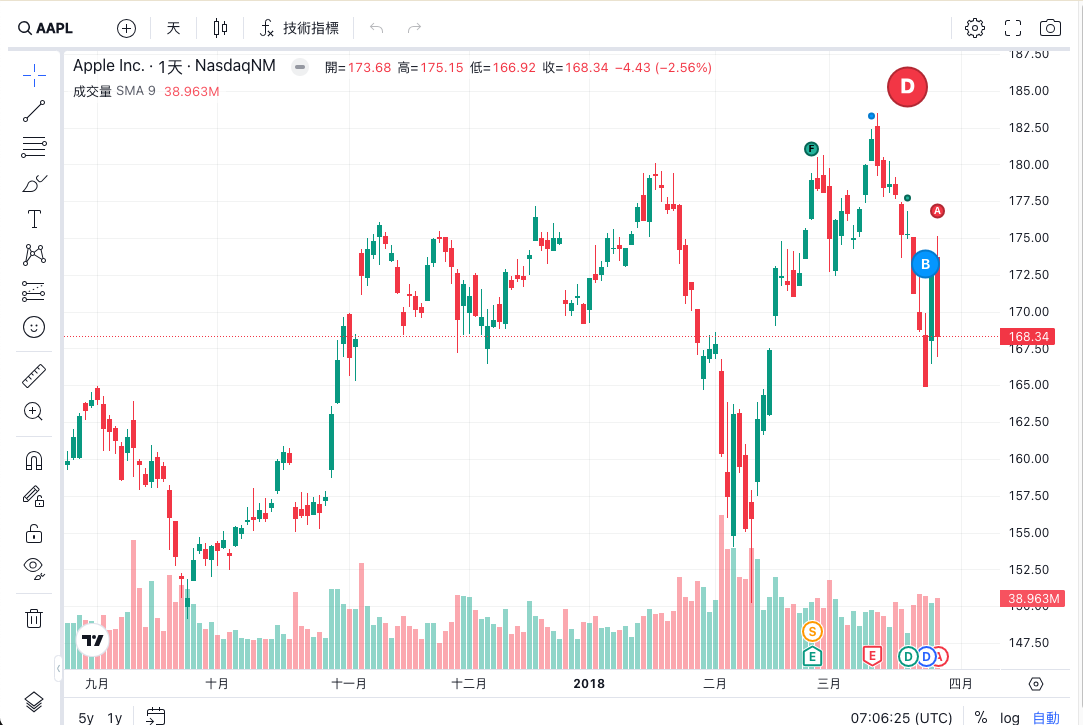

寫 Chart 元件

const Chart = () => {
  useEffect(() => {
    new window.TradingView.widget({
      container: "chartContainer",
      locale: "zh_TW",
      library_path: "charting_library/",
      datafeed: new window.Datafeeds.UDFCompatibleDatafeed("https://demo-feed-data.tradingview.com"),
      symbol: "AAPL",
      interval: "1D",
      fullscreen: true,
    });
  }, []);

  return <div id="chartContainer"></div>;
};

export default Chart;

container: 空<div>元素的 id,透過 id 來將圖表元件插入到特定位置下
library_path需要填剛剛下載放到/public靜態檔案的路徑
datafeed: 這裡的 datafeed 是官方提供測試用，後面需要實作自己的 datafeed
symbol: symbol 格式可以根據 API 不同來做改變

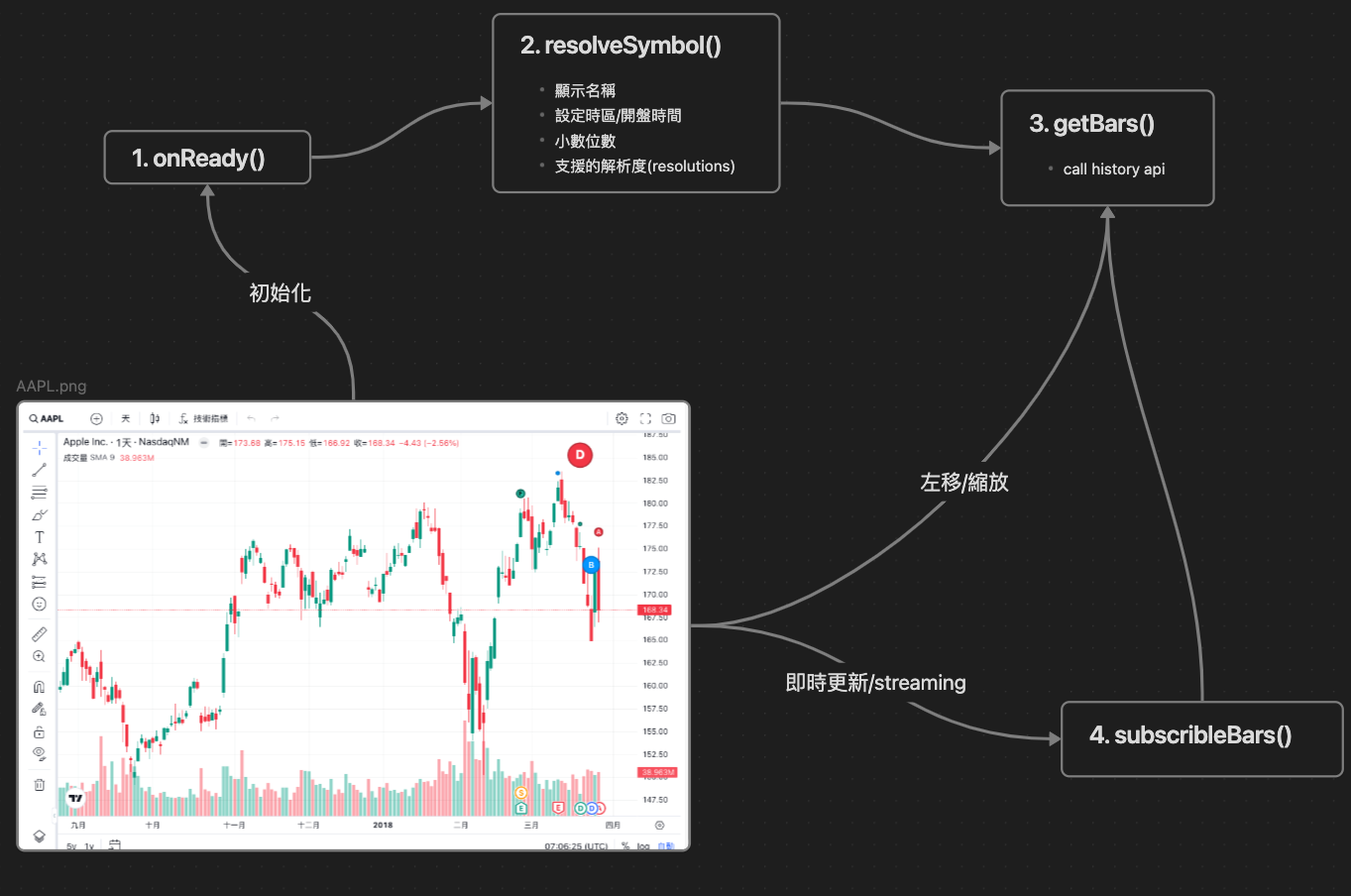

串接 API

Document: Datafeed-Implementation

import DataFeed from "./datafeed";

const index = () => {
  useEffect(() => {
    new window.TradingView.widget({
      container: "chartContainer",
      locale: "zh_TW",
      library_path: "charting_library/",
      datafeed: DataFeed, // <-- 實作自己的DataFeed
      symbol: "AAPL",
      interval: "1D",
    });
  }, []);

  return <div id="chartContainer"></div>;
};

datafeed.ts

export default {
  onReady: (callback) => {
    console.log('[onReady]: Method call');
  },
  resolveSymbol: (symbolName, onSymbolResolvedCallback, onResolveErrorCallback, extension) => {
    console.log('[resolveSymbol]: Method call', symbolName);
  },
  getBars: (symbolInfo, resolution, periodParams, onHistoryCallback, onErrorCallback) => {
    console.log('[getBars]: Method call', symbolInfo);
  },
  subscribeBars: (symbolInfo, resolution, onRealtimeCallback, subscriberUID, onResetCacheNeededCallback) => {
    console.log('[subscribeBars]: Method call with subscriberUID:', subscriberUID);
  },
  unsubscribeBars: (subscriberUID) => {
    console.log('[unsubscribeBars]: Method call with subscriberUID:', subscriberUID);
  },
};

onReady: (callback: OnReadyCallback) => {
  const config = {}
  setTimeout(() => callback(config));
},

resolveSymbol: async (symbolName: string, onSymbolResolvedCallback: (info: LibrarySymbolInfo) => void) => {
  const [market, code] = symbolName.split(':');
  const name = `${market}:${code}`;
  const res = await GETv2QuoteBySymbol(symbolName, { column: 'I_FORMAT' });
  const chineseName = res?.data?.[0]?.[QuotesCodeMapping.CHINESE_NAME];
  const price = res?.data?.[0]?.[QuotesCodeMapping.CLOSE]; // 字串小數位數由後端控制
  const countDecimal = price.toString().split('.')[1].length; // 有幾位小數
  const pricescale = Math.pow(10, countDecimal);

  const symbolInfo = {
    description: chineseName || symbolName /* 顯示的名稱 */,
    name: symbolName,
    ticker: name,
    session: '24x7',
    timezone: 'Asia/Taipei',
    type: 'forex',
    has_intraday: true,
    has_daily: true,
    exchange: '',
    minmov: 1,
    minmove2: 0,
    fractional: false,
    currency_code: '',
    pricescale,
    supported_resolutions: ['1', '5', '10', '15', '30', '60', 'D', 'W', 'M']
  } as LibrarySymbolInfo;
  onSymbolResolvedCallback(symbolInfo);
},

getBars: async (
  symbolInfo: LibrarySymbolInfo,
  resolution: ResolutionString,
  periodParams: PeriodParams,
  onHistoryCallback: HistoryCallback,
  onErrorCallback: ErrorCallback
) => {
  // tradingview會設定每個尺度(resolution)下要有幾個bars,如果沒有滿足數量可能會造成一直call getBars的無窮迴圈
  const symbol = symbolInfo.name;
  const { from, to } = periodParams;

  if (symbol) {
    try {
      const { data, statusCode } = await getSymbolHistories({
        resolution,
        symbol,
        to,
        from
      });

      if (statusCode !== 200 || data?.t?.length === 0) {
        onHistoryCallback([], { noData: true });
        return;
      }

      const { l, h, o, c, t } = data;

      const bars = t?.reduce((acc: Bar[], timestamp: number, index: number) => {
        acc.push({
          time: timestamp * 1000,
          low: l[index],
          high: h[index],
          open: o[index],
          close: c[index]
        });
        return acc;
      }, [] as Bar[]);

      bars.sort((a: Bar, b: Bar) => a.time - b.time);

      onHistoryCallback(bars, { noData: false });
    } catch (error) {
      onErrorCallback((error as Error).message);
    }
  }
},
